The
LINKERT (
Langsenkamp / Beck ) &
SCHEBLER Carburetor
Replacement Parts Page Linkert DC parts - click here Rebuilt M-series carburetor page - click here Rebuilt Linkert DC carburetor page - click here Updated 2/13/09 Shopping cart will offer choice of US shipping or international shipping on checkout. WANTED - We buy rebuildable cores, NOS ,
reproduction, and used parts for all Schebler & M-series Linkert carbs. Contact us at EMAIL or call us at 307-367-4398 Please bear in mind that many of our parts are made in Europe and the weaker the dollar gets against the Euro, the more expensive these parts will become. |
|
|
Parts
for those great old Harley Davidson & Indian Carburetors We will continue to expand this page as we expand our sources. Please note that many of these parts, such as the carb bodies, are originals, and also that many of these parts fit Indians, Harleys, and many of the other old, and long gone, brands. Many of these items, such as the OEM carb bodies and rebuilt carburetors, are one of a kind and will be posted as available. Yes, we can supply most of the part numbers shown below. |
|||
| Please bear with us through January. We are
dropping a lot of items and adding many new USA made ones. You will like the change |
||||
|
|
 |
|||
 Overhaul Kit, all 1", W/O Float # Linkert Kit 1 Includes needle & seat, bushings, gaskets, correct shaft, springs, everything for an overhaul done right. USA Made $ 68.95 |

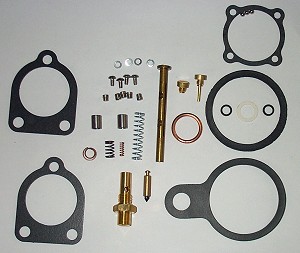

 Overhaul Kit, all 1 1/4", W/O Float # Linkert Kit 1.25 Includes needle & seat, bushings, gaskets, correct shaft, springs,both styles of bowl gaskets, everything for an overhaul done right. USA Made $ 69.95 |

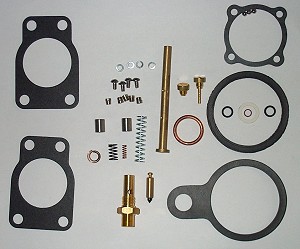

 Overhaul Kit, all 1 1/2", W/O Float # Linkert Kit 1.5 Includes needle & seat, bushings, gaskets, correct shaft, springs,both styles of bowl gaskets, everything for an overhaul done right. USA Made $ 69.95 |
||
| |
 OEM # 29058-39 All Linkert / Schebler with 4 bolt air cleaner Tough item to find separately anywhere. USA Made $ 1.95 |
 Our own Gasket Sets. Gasket kit for all 3-bolt 1" Linkert Carburetors. 1930-1958 USA Made $ 11.95 Each |
 # 27410-21 All 3-bolt 1" Linkerts Intake Manifold Gasket USA Made $ 1.95 Each |
|

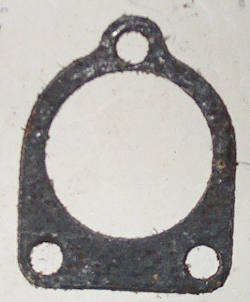

 # 27410-39 All 3-bolt 1 1/4" Linkerts Intake Manifold Gasket USA Made $ 2.50 Each |
 # 27411-40 All 4-bolt Intake Manifold Gasket USA Made $ 2.50 Each |

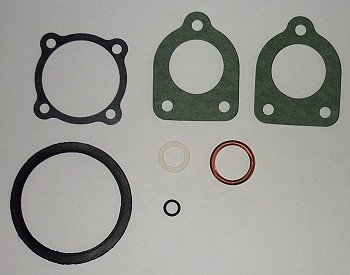

 Our Own Gasket Sets. LINKERT 1 1/4 & 1 1/2 Gasket & seal Kit ALL 1 1/4" 3 bolt Linkerts & ALL 1 1/2" 4 bolt Linkerts 1930-1965 USA Made $ 17.95 |
||
 # 27402-33 Fibre washer, needle valve . 1933-1965 Linkert Carbs. USA Made $ 1.10 Each |
 # 27376-52 Float bowl gasket . All offset bowls as used on Most Schebler All Linkert 1" Most Linkert 1 1/4" 1952-1956 Linkert 1 1/2"Carbs used on K,KH,KHK USA Made $ 2.50 Each |
 # 27391-36 Float bowl gasket . Used on all "inline" bowls as used on Linkert 1 1/2" Carbs. USA Made $2.95 Each |
||
 NEW Carburetor insulating gasket 1939 to 1973 Side–valve models OEM # 1121-39 This is an original NOS part. USA Made $ 2.95 Each |
 Carburetor Bowl Locknut Crush Gasket OEM # 27376-28 All models 1928-65 USA Made $ 2.25 |

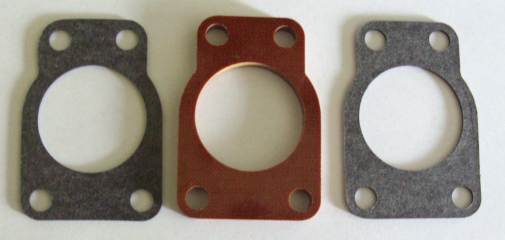

 # 27002-55 Manifold mounting kit w/spacer, 1940-1965 Knucklehead, Panhead USA Made $ 19.95  |
||
 Linkert Main Nozzle Washer OEM# 27329-52 1952 thru 1956 K & KH model. USA Made $ 1.55 Ea |
||||
 # 27060-55-V Viton intake manifold o-rings 1955-1977 - all with o-ring style intake. USA Made $ 7.99 Pair |
 # 27060-55 Stock intake manifold rubber o-rings 1955-1977 - all with o-ring style intake. USA Made $ 5.99 Pair |
 Choke Detent Ball 1926-65 # 27406-26 USA Made $ 1.95 Each |
||
 Choke Detent Spring All Linkert / Schebler 1926-65 # 27405-26 USA Made $ 1.95 Each |

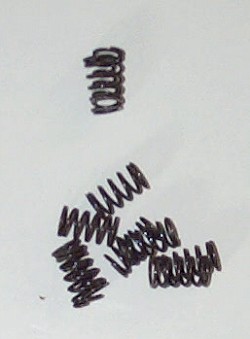

 # 27349-27 Spring, low speed needle. Big twin 1933-1965 USA Made 1.95 each |
 # 27290-24 Bushing, throttle shaft. Big twin 1931-1965 Sportster 1952-1965 USA Made $ 5.95 Pair |
||

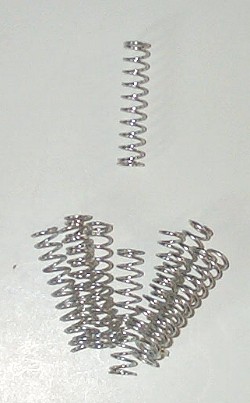

 # 27330-33 Spring, main nozzle. Big twin 1933-1965 USA Made $ 1.95 each |
 # 27291-32 Spring, throttle shaft. All Linkerts including 57-66 DC models. 1931-1966 USA Made $ 1.95 |
 # 27275-24 Throttle shaft & screws only. 1 1/4 " Linkert. Forty-five 1930-1952 Shaft is an original NOS shaft. USA Made $ 12.95 |
||

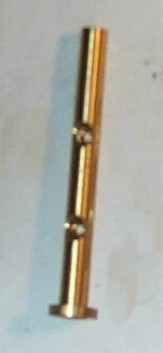

 # 27275-26 Throttle shaft & screws only. 1 " Linkert. Forty-five 1936-1954 USA Made $ 12.95 |

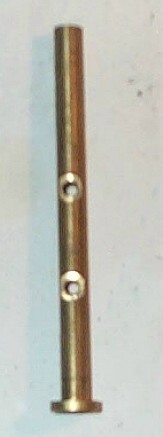

 # 27276-40 Throttle shaft & screws only. 1 1/2 " Linkert. Big twin 1940-1965 K-model 1952-1956 USA Made $ 12.95 |
 # 27276-KIT Throttle shaft, bushing, spring set. 1 1/2 " Linkert. Big twin 1940-1965 K-model 1952-1956 USA Made $ 16.95 |
||
 # 27275-KIT Shaft is an original NOS shaft. Throttle shaft, bushing, spring set. 1 1/4 " Linkert. Forty-five 1930-1952 USA Made $ 16.95 |
 # 27273-KIT Throttle shaft, bushing, spring set. 1" Linkert. Forty-five 1936-1954 USA Made $ 16.95 |

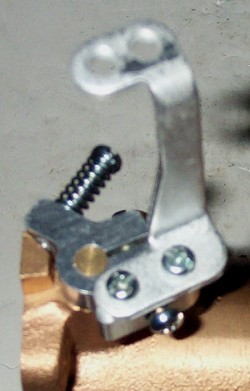

 Throttle Lever W/ Arm
OEM # 27260-49 1948-1965 BT $ 37.95 |
||

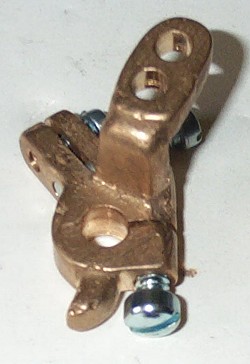

 Throttle Lever OEM # 1238-40 1940-1947 OHV. $ 37.95 |

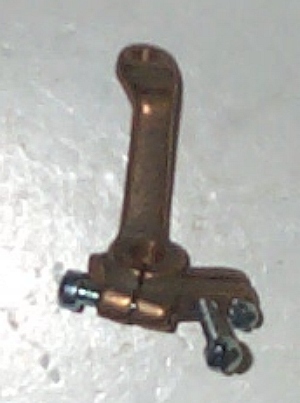

 Throttle Lever OEM # 1238-37 (27252-37) 1937-1948 side valves. $ 37.95 |

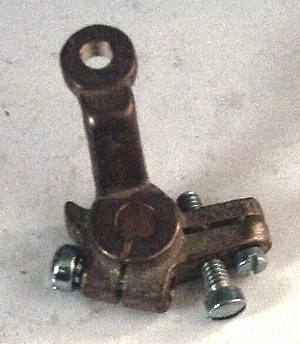

 Throttle Lever OEM # 1238-33 (27260-40/48) Schebler & Linkert 1933 VLD, 1934-1936 74 & 80,1935-1958 iron head 45. $ 37.95 |
||
Throttle Conversion KitConverts 1941-65 OHV mdels to use snap throttle # 35-0504 $ 27.95 |
 Throttle Lever Screws Set of 3 as original except small pinch screw and idle speed adjustment screw are stainless. One Each OEM#'s 011, 024, 032 ( 997, 1070, 1206 ) ( Indian 33' Most Linkert & Schebler USA Made $ 4.95 Set |
 Throttle Cable Block End
Attach inner choke or throttle cable to throttle arm. Includes screw & cotter pin. OEM # 27450-36 $ 10.95 |
||
 OEM # 993 Big twins, Indian Screw - 6-32x1/4 slotted Fillister head. ( 010 & 011 ) ( Indian # 102430 & 102433 ) Choke & Throttle Shaft USA Made $ .95 |
 OEM # 993 ( Servicar ) Screw - 6-32x1/4 slotted round head. Choke & Throttle Shaft USA Made $ .95 |
 OEM # 024 Slotted fillister head. USA Made $ 2.25 |
||
 OEM # 032 Slotted fillister head. USA Made $ 2.25 |
 OEM # Slotted fillister head. 10-32x5/16 / .300 head diameter This is a fillister head screw with a custom head diameter that was used in the Linkert low speed needle knob. These have no plating so that they can be nickeled or parkerized. USA Made $ 2.95 |
OEM # Slotted fillister head. 12-24x3/8 USA Made $ 2.50 |
||
OEM # Slotted fillister head. 12-24x5/8 USA Made $ 2.50 |
Spring, knob, Fits all linkert low speed needle knobs USA Made $ 1.95 |
|||
 #27345-41 Spring Collar for low speed needle spring. $ 10.95 |
 Screw,Needle Valve Lever OEM # 27397-27 ( 1293-27) Schebler & Linkert $ 10.95 |
Needle Valve Lever
OEM# 27395-27 ( 1292-27) Schebler & Linkert 1927-1965 $29.95 |
||
 Needle Valve, Low Speed , All1 1/4, 1 1/2 OEM # 27337-27( 1261-27A) Schebler & Linkert $ 29.95 |
Needle Valve, Low Speed,1"
$ 29.95OEM # 27340-33 |
 Needle Valve, High Speed , WLA OEM # 27298-40 This is an original NOS part. USA Made $ 39.95 |
||

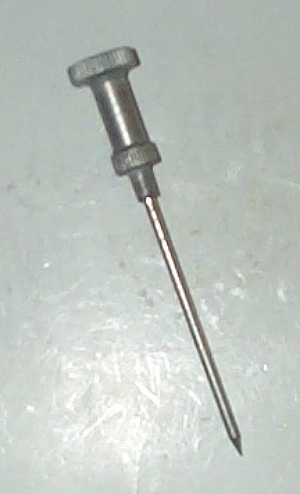

 Needle Valve, High Speed , 40-49 BT OEM # 27297-40 (1254-40) $ 32.95 |
 Needle Valve, High Speed , 50-65 BT OEM # 27300-50 $ 21.95 |

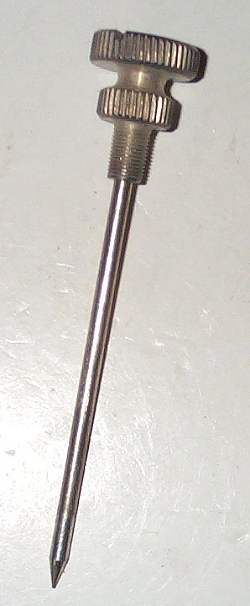

 Needle Valve, High Speed , Type 2 45 & BT OEM # 27297-27 (1254-27) Schebler & Linkert $ 34.95 |
||

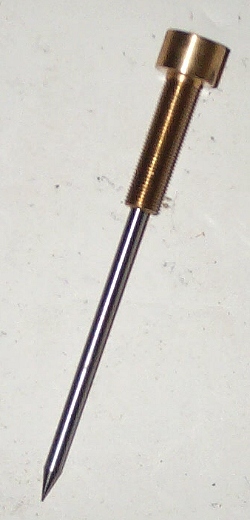

 High speed needle valve For use on M88 carbs with damaged body threads• 1941 to 1952--45 Military WLA & WLC models. The needle valve has longer threads which reach undamaged threads down in carb body.The needle is machined complete with the lock screw as an integral piece. For special tap, see tools
listed below. $ 29.95 |
 High speed needle valve Type 2, (3–3/4") 1–1/4" & 1 1/2"carburetors with damaged body threads Can be used to repair any of the 1 1/4" or 1 1/2" M models and some Scheblers. • 1927 to 1965 BT SV, OHV • 1937 to 1952--45 WL & WLD Needle with long threads that reach undamaged threads inside the carb body For special tap, see tools
listed below. # 1254-27 OS $ 29.95 |
|
||

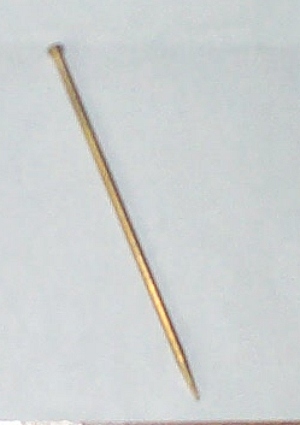

 Needle Valve, Low Speed , All Replacement Needle Only OEM # 27336-27 $ 14.95 |
 Locking Plug, WLA High SpeedNeedle Valve OEM # 1248-40M This is an original NOS part. USA Made $ 12.95 |
 Needle Thread Die Here is a hard to find die to clean up those threads on your high speed needles and low speed needle knobs. $ 24.95 |
||
 Fixed Jet OEM # 27318-51 1951-65 Big Twin Jet #19 USA Made $ 14.95 |
 Fixed Jet OEM # 27318-50 1951-65 Big Twin Jet #18 USA Made $ 14.95 |
 Fixed Jet Big Twin M88 WLA Carb Jet # 1 USA Made $ 14.95
|
||
 Fixed Jet #17 USA Made $ 14.95 |
 Fixed Jet #7 USA Made $ 14.95 |
 Fixed Jet #9 USA Made $ 14.95 |
||
 # 27382-33 Needle & seat assembly Big twin 1933-1965 VITON tip needle $ 21.95 |

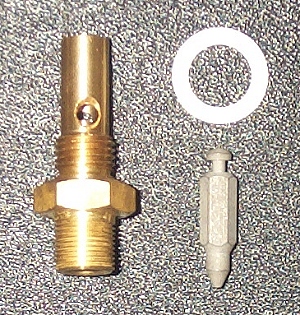

 #1273-33-A ( 27382-33) Needle & seat assembly Big twin 1933-1965 STEEL tip needle $ 34.95 |
 Float Lever OEM # 27381-50 (1272-33) ALL $ 29.95 | ||
 NEW ! OEM 27382-61 (also replaces 27382-57 ) Correct needle and seat for all Linkert DC carbs with steel tip needle as original. Dual gas ports for better fuel flow as that was a problem on many Linkert DC carbs. May also be used with Linkert M-series carbs when connecting directly to fuel line without having to use an adapter. Our own and unavailable anywhere else. Prices shown at right. |
 Our new 27382-61 needle & seat shown in both styles of Linkert bowls. M-series on the left and DC model on the right. $ 21.95 each |
|||
 # 27380-33-Foam. New hi-tech foam float for all Linkert M series carbs and some Scheblers. Impervious to all of today's fuels.Made of the same material as used in the auto industry today. Trouble free - period. And still weighs the same as the original.. The finest on the market and USA made. USA Made $ 38.95 |
 # 27380-33-S Sealed cork Float Trouble free cork. Sealed with ethanol resistant automotive sealer. We do NOT use Kreem sealer as it is not holding up to today's fuels. All M-models. Big twin 1933-1965 Replaces OEM # 27380-33A $ 31.95 |
 Float, cork, high quality, European. Best available anywhere and tested with all fuels. OEM # 27380-33 6 grams $ 29.95 |
||
|
|
 NEW Float Screw OEM # 35-9059B Screw and nut For mounting cork float to float lever 1933 to 1965 Linkert/Schebler No Modifications required with this one. USA Made $ 5.95 Set |
 #35-9059
Float Nut & Bolt All Linkert and most Schebler $ 3.95 Set Note that you will have to slightly open up your lever slot for the screw. 5 minute job with a small file. |
||
 Float Pivot Pin w/Cap Short side also is used as float bowl drain plug. OEM # 27383-11 (1196-11) All Schebler / Linkert 1916-65 $ 12.95 |
 OEM # 1196-11 OS ( 27383-11 OS) Float Pivot Pin w/Cap OVERSIZE threads for damaged threads in bowl –All Schebler & Linkert 1916 to 1965 $ 14.95 |
 Float Pivot Pin w/o Cap For late bowls with pin only and no cap on opposite side. Parkerized original. OEM # 27383-11 / NOS All 1930-65 This is an original NOS part. $ 14.95 |
||

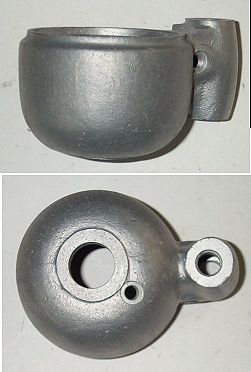

 Float Bowl, Type 2w/drain OEM # 27037-33 $ 99.95 |
Float Bowl, Type1 w/o drain
OEM # 1267-24 $ 99.95 |
 Float Bowl, Late,All OEM # 27371-36 $ 99.95 |
||
 Body Pins, Float Bowl Alignment, Late,All Set/2 # 35-0241 $ 4.95 Set |
 Bowl Lock Nut only All Linkert / Schebler 1930 - 1965 –Cadmium plated OEM #1268-29 $ 8.95 |
 Float Bowl Valve Cap $ 13.95 |
||
 Float Bowl Drain Plug & Gasket # 35-9065 1933-65, ALL W/Bowl Plug $ 6.95 |
 Bowl Drain Plug Gasket
OEM# 27330-52 VERY tough little item to find separate. These fit the drain plugs on all float bowls using a drain plug. We also use them on the new reproduction float pivot pins. This saves having to rework the pivot bolt and float lever. USA Made $ 4.95 / 3 |
 OEM # 1109-41 Inlet Pipe Extension ( spacer ) 1941 – 1946 WLD • 1941 WLA • 1942 & 1943––42 WLA • 1942 WLC (All 3 bolt 1 1/4" Linkerts) This is an original NOS part. USA Made $29.95 |
||
 Choke Rod Kit 1941-47 # 35-0534 $ 37.95 |
 Choke Rod Kit 1948-65 # 35-0506 $ 31.95 |
|
||
 Main Nozzle OEM # 27331-33 BT & 45 SV 1933-53 USA Made $21.95 |
 Main Nozzle OEM # 27331-40 OHV 1940-51 USA Made |
 Main Nozzle OEM # 27332-50 M-74 $ 22.95 |
||
 Choke Disc
OEM #1232-24 (27225-24) 1930-47 1 1/4" SV & OHV and marked "1 1/4" USA Made This is an original NOS part. $ 29.95 |
 Choke Disc OEM # 27225-48 1948-65 BT 1 1/2" - M74B $ 23.95 |
 Choke Lever

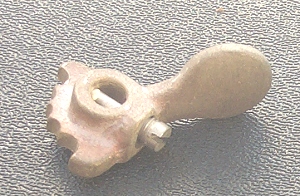

OEM # 1233-33 w/ air cleaner $ 37.95 |
||
 Choke Shaft OEM # 27218-48 1 1/4" & 1 1/2" Big Twins All with a choke rod. $ 24.95 |
 Air in Shaft Detent Stop
OEM# 27219-36 All BT USA Made $14.95 |
 Choke ShaftOEM # 27215-33 45 & BT All with a choke lever $ 24.95 |
||
 Choke Lever Screw OEM # 27251-24 $ 4.95 |
 Choke Lever OEM # 27235-33 SV $ 34.95 |
 Choke Lever OEM # 27288-33 WLA $ 34.95 |
||
 Throttle Disc OEM # 27280-40 (1244-40) BT 1 1/2" Correct #12 marking and correct bevel 1940 to 1951 OHV • 1952--61" OHV $ 21.95 |

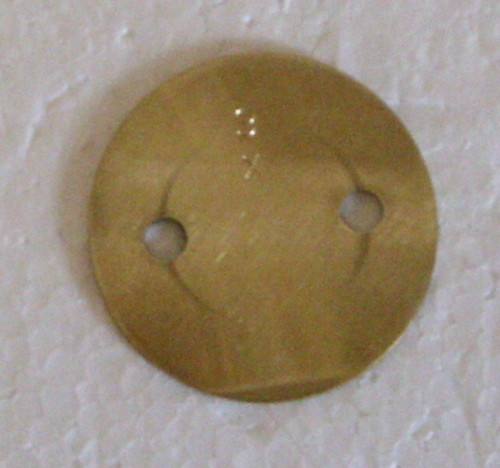

 Throttle Disc OEM # 27280-51 BT 1 1/2" Correct 9X marking and correct bevel $ 21.95 |

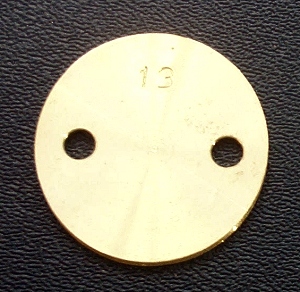

 Throttle Disc OEM # 27280-24 ( 1244-24) Mod 45 1 1/4"( #13) $ 19.95 |
||
 Throttle Disc #14 This is actually an original NOS Indian part, but is identical to the Harley of same # . $24.95 |
 Throttle Disc #12 for 1" Linkerts ( M16, M18, etc. ) OEM# 27280-34 This is actually an original NOS Indian part, but is identical to the Harley . This is the one for the small 45 type carbs, NOT the M61, etc that also are stamped "12" . $24.95 O/S |
 Throttle Disc #13 This is an original NOS Harley part used in the 1 1/4" Linkert / Schebler carburetors. $24.95 |
||
 OEM # 1263-24 ( 27327-24 ) Drill plug / Brass All Linkert & Schebler carbs 1924 to 1965 $ 3.95 Each |
 Idle Passage Plug OEM # 27325-33 All 1933-65 Including Linkert DC models. $ 3.95 Each |
 Drill Plug / SteelOEM # 27327-24 ( 1263-24 ) All Schebler / Linkert 1924 to 1965 $ 2.95 Each |
||
 Tap 01 Special tap for high speed needle threads in body and also threads in low speed needle lever. All Linkerts and most Scheblers. Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punch. $ 10.95 |
Tap 02
Style is "plug" tap ( only first 3-6 threads are beveled ) and
all taps we sell are carbon steel. This means if you break one in the
body, you can shatter it with a punch.Special tap for body plugs, fixed jet, and low speed pivot lever bolt threads in body. All Linkerts, many Scheblers. $ 9.95 |
Tap 03 Special tap for intake manifold threads in body on all 1 1/4" & 1 1/2" bodies. Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punch. $ 9.95 |
||
|
Tap 04 Special tap for DC model main nozzle threads. Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punch. $ 9.95 |
Tap 05 Special tap for float lever pivot bolt threads in float bowl, as well as float bowl drain plug. All Linkerts, many Scheblers. Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punch. $ 9.95 |
Tap 06 Special tap for All Linkert / Schebler / DC model float bowl needle & seat threads. All Linkerts, many Scheblers. Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punch. $ 9.95 |
||
|
Tap 07 Special tap for air cleaner flange threads. All Linkerts, many Scheblers. Style is "plug" tap ( only first 3-6 threads are beveled ) and all taps we sell are carbon steel. This means if you break one in the body, you can shatter it with a punch. $9.95 |
 Die 01 Special die for the float bowl stem threads. All Linkerts, many Scheblers. $ 49.95 |
 Rethreader 01 Rethreader tool for the float bowl stem threads, rethreads ONLY, not for cutting threads.. All Linkerts, many Scheblers. $19.95 |
||
 OEM # 29155-36 Air cleaner mounting screw & lock ring set. Exact reproduction of original used on all twins 1936-1955 - parkerized. USA Made $ 12.95 |
 OEM # 29060-56 Air cleaner mounting screw & lock ring set. Exact reproduction of original used on all twins 1956-1965 USA Made $ 11.95 |
|||
 Carburetor Bowl Locknut Set Cad Plated # 8902-4 OEM # 27375-29 All models 1930-65 USA Made $ 16.95 |

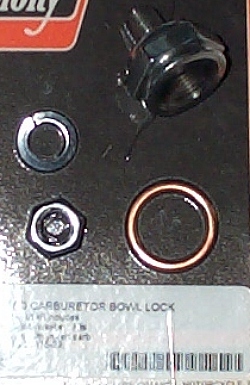

 Carburetor Bowl Locknut Set Chrome Plated # 8901-4 OEM # 27375-29 All models 1930-65 USA Made $ 18.95 |
 Venturi - 15/16" OEM # 27364-41 ( 1265-41M ) Used om M88, M90, M641 USA Made $ 41.95 |
||
|
Venturi - 7/8" OEM # 27360-29 ( 1265-29A ) Used om M4, M11, M16, M18 USA Made $ 39.95 |
Venturi - 1" OEM # 27361-30 ( 1265-30 ) Used om M31, M42, M54, M54B USA Made $ 39.95 |
Venturi - 1 1/16" OEM # 27362-30 ( 1265-30A ) Used om M2, M5, M21, M41, M515, M52, M55, M58, M64, M65, M84, M97 USA Made $ 39.95 |
||
|
Venturi - 1 1/8" OEM # 27363-30 ( 1265-30B ) Used om M41L, M51L USA Made $ 39.95 |
Venturi - 1 1/8" ( 1265-40 ) Used om M61B, M61, M36A, M36, M35, M35T, M35TP USA Made $ 39.95 |
Venturi - 1 5/16" OEM # 27363-41 ( 1265-41 ) Used om M74B, M74, M45A, M45 USA Made $ 41.95 |
||
 # 7158-2 Gas line adapter. Adapts Linkert carb to 1/4" I.D. flexible gas line. USA Made $8.95 |
|
 Fuel Strainer W/Screen OEM# 3623-32 1932-38 Big Twin Nickel USA Made $79.95 |
||
 Fuel Strainer W/Screen OEM# 3623-39 1939-41 Big Twin Zinc USA Made $59.95 |
 Fuel Strainer W/Screen OEM# 62250-50 1950-65 Big Twin Zinc USA Made $69.95 |

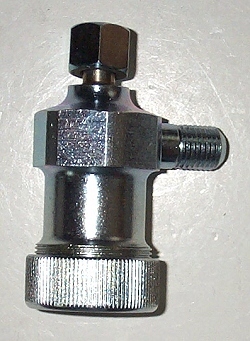

 Fuel Strainer W/Screen OEM# 62250-41 1942-49 Big Twin Zinc USA Made $69.95 |
||
 Screen for Fuel Strainer OEM# 62265-32 All USA Made $19.95 |
 Cap for Fuel Strainer OEM# 62268-32 All / chrome USA Made $11.95 |
 Cap for Fuel Strainer OEM# 62268-32 All /cadmium USA Made $11.95 |
||
 Cap for Fuel Strainer OEM# 3629-32 All / Brass USA Made $19.95 |
 Gasket for Fuel Strainer OEM# 62270-32 All USA Made $ 4.95 Pair $ 21.95 / 10 |
 Screen for Fuel Strainer OEM# 3613-39 1939-41 USA Made $5.95 |
||
| |

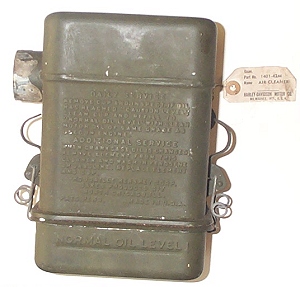

 OEM # 1401-42M This one still has the Harley tag !! USA Made $ 135.00 |

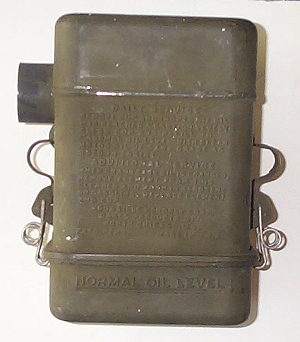

 OEM # 1401-42M NOS original WLA rectangular oil bath air cleaner. Near mint.#1 of 2 USA Made $ 125.00 |
||
 Carb Support Bracket OEM# 1110-33 Parkerized. Used on 1930-38 SV Big Twins USA Made $ 10.95 |
 Carb Support Bracket OEM# 27432-36 Parkerized. Used on 1936-52 45 Solo 1936-58 Servi-car USA Made $ 9.95 |
 Carb Support Bracket OEM# 1110-39 Parkerized. Used on 1939-48 SV Big Twins USA Made $ 10.95 |
||
 Carb Support Bracket OEM# 27431-41 Parkerized. Used on 1941-53 OHV Big Twins USA Made $ 12.95 |
 Carb Support Bracket OEM# 27431-41B Parkerized. Used on 1954-65 OHV Big Twins USA Made $ 14.95 |

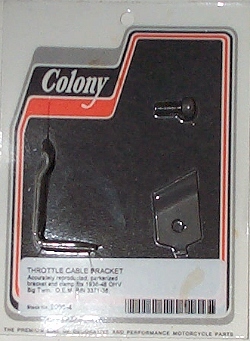

 9005-4 Throttle Cable Bracket OEM # 3371-36 Parkerized - 1936-48 OHV BT USA Made $11.99 |
||

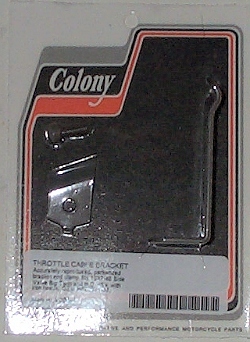

 9006-4 Throttle Cable Bracket OEM # 3371-37 Parkerized - 1937-48 SV BT & Iron Head 45's USA Made $12.99 |

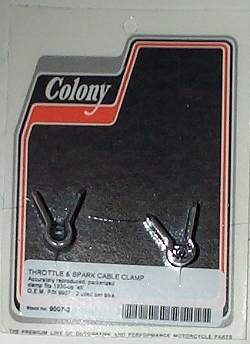

 9007-2 Throttle & Spark Cable Clamp OEM # 9967 Parkerized - 1930 - up 45 USA Made $9.99 |

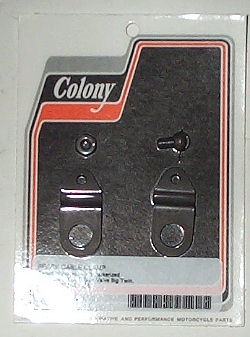

 9008-5 Spark Cable Clamp OEM # 56627-38 Parkerized - 1938-48 SV BT USA Made $9.99 |
||
